Freedom
Qseven® allows for the use of non x86 processor architectures. It also supports the low power mobile ARM processor architecture. Customers have the freedom to use all kinds of Qseven® modules without the need to change the carrier board.
Mobile Applications
Qseven® is an optimized standard targeting towards low power and mobile / ultra-mobile applications.
Low Power
Qseven® is defined for a maximum power consumption of 12 Watts. It is designed to be operated by single 5 Volt DC power and provides all additional signals for battery management. This simple power requirement allows for small mobile solutions powered by compact two cell batteries.
Connector
Qseven® does not require an expensive board-to-board connector. Instead, it utilizes a very affordable MXM2 card slot with 230 pins in a 0.5 mm configuration.
Legacy Free
Qseven® is a legacy free standard focused on high speed serial interfaces such as PCI Express® and Serial ATA. Qseven® omits support for legacy interfaces like EIDE and PCI, in order to provide ideal support for today‘s, as well as future, mobile CPUs and chipsets.
Compact Size

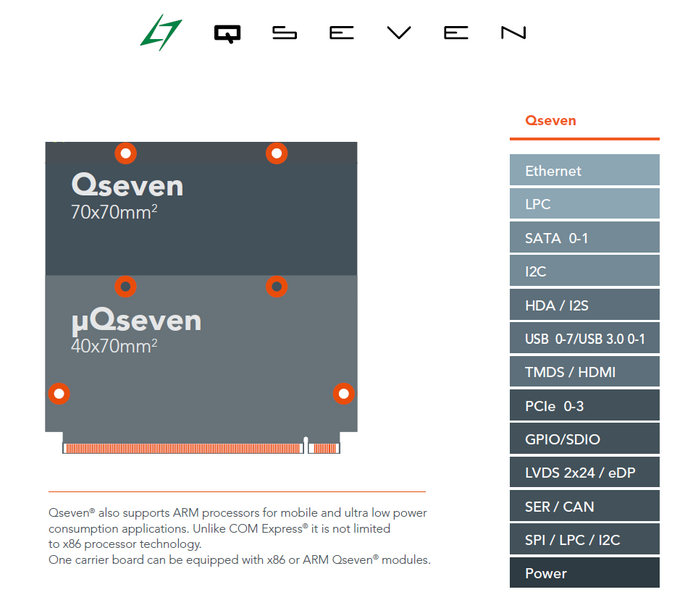

The module‘s dimensions are a mere 70 x 70 mm². This means it can be easily integrated into size constricted systems. The even smaller μQseven definition is 40x70mm² only but is limited to support ultra-low power CPUs only.
Slim Design
When comparing to COM Express® Basic & Compact and SMARC, Qseven® enables slimmer mechanical housings.
SGeT e.V.
The Qseven® Specification is hosted by the SGeT standardization group founded in 2012. congatec is founding member, board member and Qseven® development team member of the SGeT.
Consortium:
The Specification will be hosted by the "Standardization Group for Embedded Technologies" SGET: www.sget.org
Latest Specification:
Qseven Design Guide:
