Real Time Hypervisor
Harness the power of today’s multicore processors
The innovative Real-Time Systems Hypervisor permits multiple operating systems - both real-time (RTOS) and general purpose operating systems (GPOS) like Microsoft™ Windows® or Linux - to run concurrently on multicore x86 processors. By utilizing this powerful and cost-effective software solution, designers achieve increased flexibility in system design and remarkable enhancements to functionality and performance - at the same time reducing overall system cost.
The innovative Real-Time Systems Hypervisor permits multiple operating systems - both real-time (RTOS) and general purpose operating systems (GPOS) like Microsoft™ Windows® or Linux - to run concurrently on multicore x86 processors. By utilizing this powerful and cost-effective software solution, designers achieve increased flexibility in system design and remarkable enhancements to functionality and performance - at the same time reducing overall system cost.
Hard Real-Time Performance: Multiple Operating Systems in Perfect Harmony
- Combine real-time operating systems like VxWorks®, QNX Neutrino or Real-Time Linux , with e.g. Microsoft™ Windows®
- Operating systems reside simultaneously on an x86 computer while maintaining the hard real-time characteristics of an RTOS
- Reboot any operating system anytime without disturbing the execution of other operating systems
- Communication via high performance virtual TCP/IP network and flexible shared memory
- User-definable boot sequence
Hard Real-Time Performance: Multiple Operating Systems in Perfect Harmony
- Combine real-time operating systems like VxWorks®, QNX Neutrino or Real-Time Linux , with e.g. Microsoft™ Windows®
- Operating systems reside simultaneously on an x86 computer while maintaining the hard real-time characteristics of an RTOS
- Reboot any operating system anytime without disturbing the execution of other operating systems
- Communication via high performance virtual TCP/IP network and flexible shared memory
- User-definable boot sequence
Advantages
- Reduced system costs and physical size
- Hardware consolidation
- Hard real-time performance
- Maximum flexibility in system functionality
- Increased reliability (MTBF) as no additional hardware is required for
additional operating system - Works seamlessly with COTS and proprietary operating systems
- Proven in thousands of systems worldwide
- Reduced system costs and physical size
- Hardware consolidation
- Hard real-time performance
- Maximum flexibility in system functionality
- Increased reliability (MTBF) as no additional hardware is required for
additional operating system - Works seamlessly with COTS and proprietary operating systems
- Proven in thousands of systems worldwide

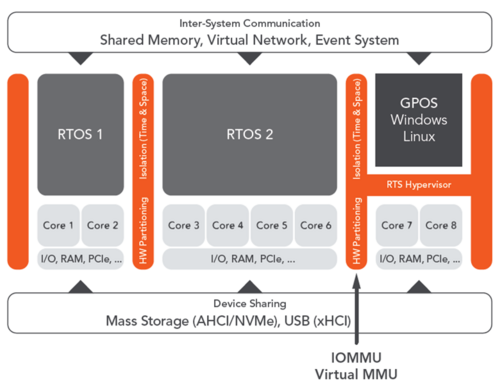

About the Hypervisor
- All operating systems operate completely independent
- User defined startup sequence of operating systems
- Any operating system can reboot without affecting other operating
systems - All operating systems safely separated and protected
- Standard development tools can be used (supplied by the operating
system vendors) - Standard drivers can be used - no special development required
- NUMA (Non-Uniform Memory Access) fully supported
- OS independent drive sharing
- All operating systems operate completely independent
- User defined startup sequence of operating systems
- Any operating system can reboot without affecting other operating
systems - All operating systems safely separated and protected
- Standard development tools can be used (supplied by the operating
system vendors) - Standard drivers can be used - no special development required
- NUMA (Non-Uniform Memory Access) fully supported
- OS independent drive sharing
Learn more about Real-Time Systems
Real-Time Systems are the experts in virtualization technology you can trust for consolidating deterministic real-time operating systems (RTOS) with other, less critical applications on a single hardware platform. Our bare metal hypervisor provides a privileged mode that allows operating systems to run in real-time, thereby avoiding any overhead from virtualization. Native real-time capability stays at 100%.
Learn more about the RTS Hypervisor
With the RTS Hypervisor, you can run a variety of real-time and general purpose operating systems on a single hardware platform.
Benefits: Reduced hardware costs, energy consumption, cabling and space.
