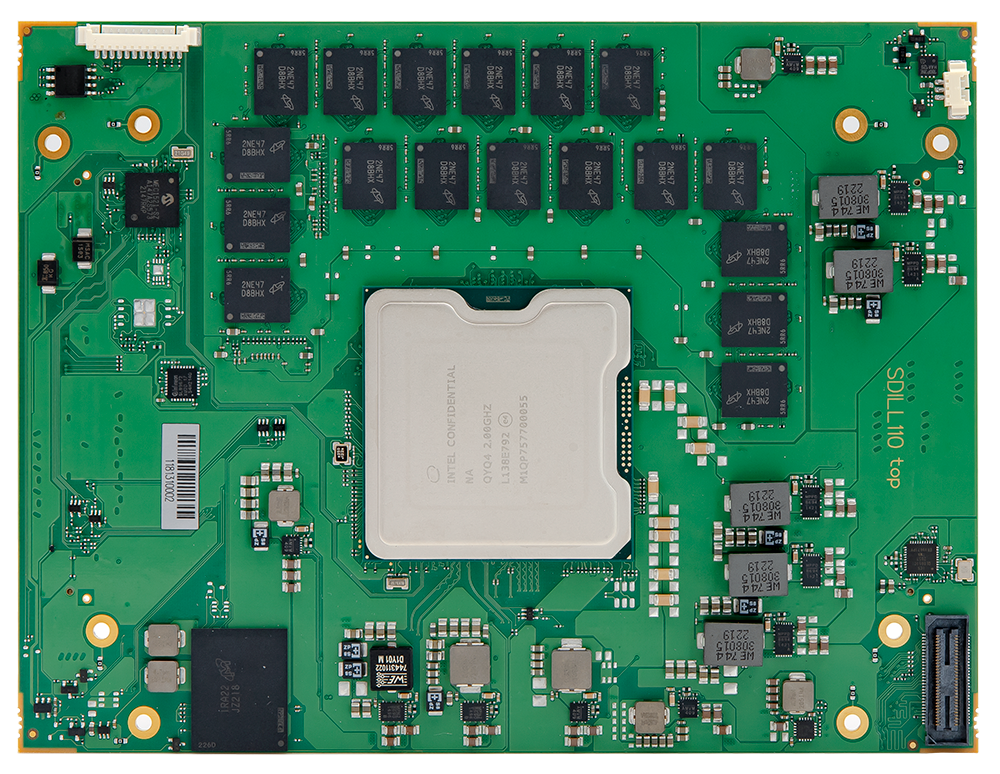

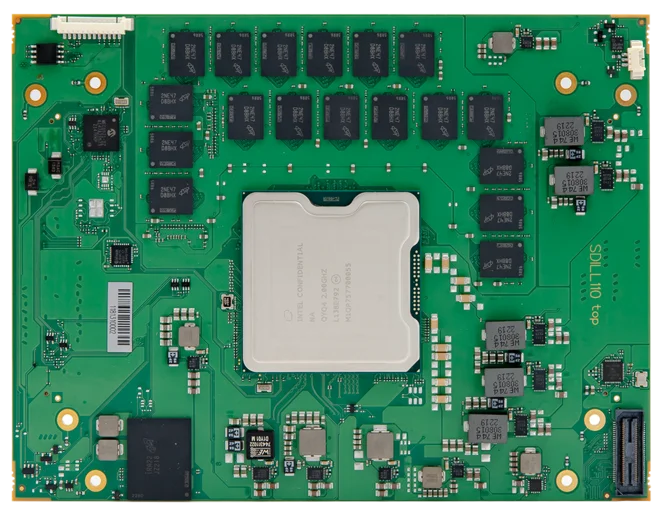

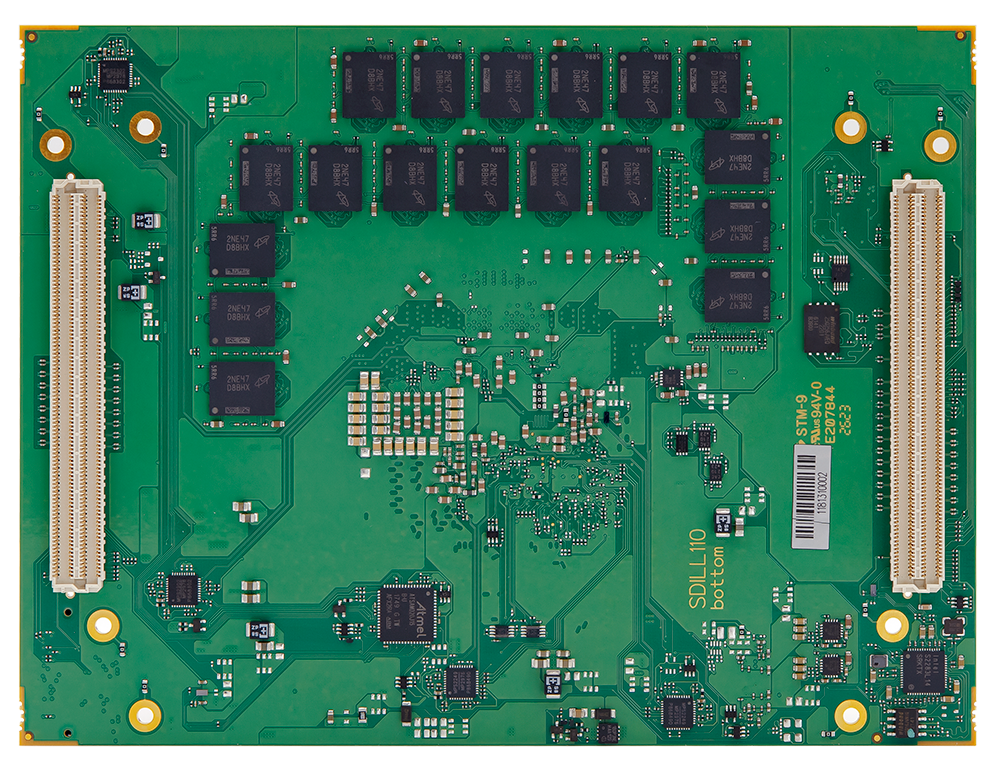

            conga-sdIL

            formerly JUMPtec COMh-sdIL


            COM-HPC Server Size D module based on Intel® Xeon® D-1700 / D-1800 (code name "Ice Lake")

            Learn all about COMs - download the guide

            • Intel® Xeon® D-1700 / D-1800 SOC processors
            • Industrial Use Condition with extended Temperature options
            • 8x LAN Ports: versatile configurations up to 100G
            • Up to 1 TByte NVMe SSD onboard
            Congatec Logo
            Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

            Value adding ecosystem offerings

            Virtualization

            Operating Systems

            Carrierboards

            Cooling Solutions

            Specification

            Formfactor
            COM-HPC
            CPU
            Intel® Xeon® D-1715TER – 4 x 2.4 GHz, 10 MB cache, 50G Eth, 50W
            Intel® Xeon® D-1732TE – 8 x 1.9 GHz, 15 MB cache, 50G Eth, 52W
            Intel® Xeon® D-1746TER – 10 x 2.0 GHz, 15 MB cache, 100G Eth, 67W
            DRAM
            Up to 64GB DDR4-2667 soldered memory - ECC, extended temp
            Ethernet
            1 x 1/2.5 Gb Ethernet
            100GbE/2x 50GbE/4x 25GbE/2x 25GbE + 4x 10GbE/8x 10GbE
            I/O Interfaces
            16 x PCIe Gen4
            16 x PCIe Gen3
            4 x USB 3.0
            4 x USB 2.0
            2 x SATA 6 Gb/s
            SPI
            eSPI
            SM-Bus
            SATA Gen 3.2
            Mass storage
            Up to 1 TByte NVMe SSD (on request)
            embedded BIOS Features
            AMI Aptio UEFI
            Security
            Trusted Platform Module (TPM 2.0)
            Power Management
            ACPI 6.0
            Operating Systems
            Linux
            Microsoft® Windows 11
            Microsoft® Windows® 10
            Windows Server 2022
            Temperature
            Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating
            Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
            Humidity
            93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
            Features
            Staged Watchdog
            Size
            120 x 160 mm

            Documents

            All documents found on this page are updated without notification. Always check this page for the latest version.

            Data Sheet
            Data sheet for conga-sdIL 05.11.2026
            Manual
            User's Guide for conga-sdIL 22.01.2026
            Whitepaper
            The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

            Software

            Linux
            ksc20-drivers_r1.5.tar 18.06.2026 / 753.60 KB
            Linux KSC20 Board Driver for GPIO, I2C, Watchdog, etc…. Please follow the readme inside for driver usage and supported features. Note: for all KSC20 (embedded controller) based Kontron and JUMPtec systems
            Windows 10 IoT
            README_AIODP_WIN_ILD_COMh_sdIL_v1.1.0.0 18.06.2026 / 2.39 KB
            Readme File Driver Package Installation Kit for: – Windows Server 2022 – Windows 11 (IOT) Enterprise 64bit LTSC 2024 – Windows 10 (IOT) Enterprise 64bit LTSC 2021 Note: for all KSC20 (embedded controller) based Kontron and JUMPtec systems
            Windows 11 Iot
            README_AIODP_WIN_ILD_COMh_sdIL_v1.1.0.0 18.06.2026 / 2.39 KB
            Readme File Driver Package Installation Kit for: – Windows Server 2022 – Windows 11 (IOT) Enterprise 64bit LTSC 2024 – Windows 10 (IOT) Enterprise 64bit LTSC 2021 Note: for all KSC20 (embedded controller) based Kontron and JUMPtec systems

            Product Variants

            partnumber(s) found

            conga-sdIL/D-1746TER (P/N 810458 / HSD04-6400-46-1)

            COM-HPC® Server Size D module with Intel® Xeon® D-1746TER processor, 64 GB ECC memory, SoC-LAN support for 4× 25G-KR and operating temperature from −40 °C to +85 °C.

            conga-sdIL/D-1732TE (P/N 810461 / HSD04-3200-32-1)

            COM-HPC® Server Size D module with Intel® Xeon® D-1732TE processor, 32 GB ECC memory, SoC-LAN support for 5× 10G-KR and operating temperature from −40 °C to +85 °C.

            conga-sdIL/D-1715TER (P/N 810462 / HSD04-1600-15-1)

            COM-HPC® Server Size D module with Intel® Xeon® D-1715TER processor, 16 GB ECC memory, SoC-LAN support for 5× 10G-KR and operating temperature from −40 °C to +85 °C.

            Ecosystem Details

            Virtualization

            conga-zones Hypervisor (P/N 300501)

            Operating Systems

            Kontron OS (P/N 300004)
            Ubuntu Pro (P/N N/A)

            Carrierboards

            COM-HPC/SERVER EVAL-CARRIER (P/N 810769 / HST01-0001-10-0)

            Evaluation Carrier with 10-mm stack-up connector

            Cooling Solutions

            COMh-sdIL (E2) HSP THREADED (P/N 810508 / HSD04-0000-99-0)

            COMh-sdIL (E2) heatspreader threaded

            COMh-sdIL (E2) HSP THROUGH HOLE (P/N 810507 / HSD04-0000-99-1)

            COMh-sdIL (E2) heatspreader through hole

            COMh SIZE D ACTIVE UNI COOLER (W/O HSP) (P/N 810505 / HSD99-0000-99-0)

            COM-HPC Size D Universal Active Cooler for Heatspreader Mounting (160 x 100 x 46 mm)

            COMh SIZE D PASSIVE UNI COOLER (W/O HSP) (P/N 810504 / HSD99-0000-99-1)

            COM-HPC Size D Universal Passive Cooler for Heatspreader Mounting (160 x 100 x 46 mm)
